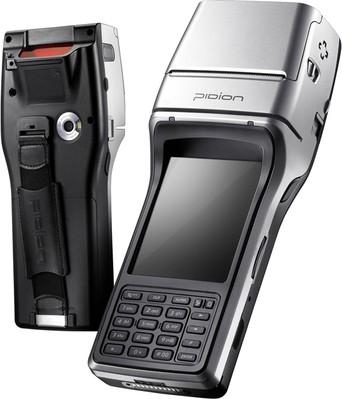

藍鳥BIP-1300數據采集器
- IC卡閱讀器、條碼掃描器、MSR、終端打印機為一體的PDA
- 支持多種通信設備（CDMA(CDMA 1X, EVDO)、WLAN, GSM）
- Intel PXA270 520MHz
- Windows Mobile 5.0 , Win CE 5.0
- 128MB RAM, 128MB ROM
- 3.5inch 260,000 color TFT LCD
- 通過中國銀聯認證
BIP-1300-產品特征
- 功能
BIP-1300是集磁條卡讀卡功能、多業務路由器、IC讀卡器、熱敏打印機、聲音和數據交換及無限寬帶于一體的PDA掌上電腦。該款機在銷售點系統、收據打印，票務查詢和高速同步數據傳輸上的功能，明顯的提高了銷售效率。
- 安全性
為交易和支付帶來安全保證
-磁條卡讀卡功能(1/2/3磁道，可雙向刷卡)，通過ISO 7810、ISO 7811、 ISO 7813 認證。
-IC卡讀卡器。
-接觸讀卡功能：通過PCI PED, EMV Level 1&2, PBOC Level 1&2 approved, ISO 7816 , 中國銀聯認證。
-非接觸讀卡功能：通過ISO 14443 A/B, ISO 15693認證。
- 兼容性
BIP1300內置Windows移動操作系統，可以輕松與其它傳統的設備和電腦進行串聯。此款機可以讓你沒有任何限制下處理所有的工作文檔、客戶、存貨清單、貨物運輸甚至更多的實時信息。
- 工藝性
-3.5英寸的顯示屏可以讓您享受極佳的圖標繪制和閱讀功能。
-觸摸屏和功能鍵讓您進行簡單快捷的操作。
-流線型設計、超薄及極輕的機型款式讓您在工作當中只需一只手便可以使用。
BIP-1300藍鳥數據采集器-參數配置
| Product | BIP-1300 | PCI Compliance BIP-1300 |
| Physical Characteristics | ||
| Dimensions (W x H x D) | 87(min.74) x 218 x 56.2(min.29)mm / 3.4(min.2.9) x 8.6 x 2.2(min 1.1) inch | |
| Weight | Excluding battery: 412g / Including standard battery: 507g | |
| Display | 3.5" QVGA with backlight, TFT-LCD, 260K, 240 x 320 | |
| Touch Panel | Analog resistance type | |
| Keypad | Numeric / QWERTY | |
| Standard Battery | Rechargeable, 7.4V, 2,000mAh, Li-ion | |
| Expansion Slot | Customer-accessible SD slot for removable memory cards up to 2G | |
| SIM/SAM Slot | 1 SIM / 3 SAMs | |
| Printer | 2" thermal Printer (max. 90mm/sec) | |
| Audio | Speaker, Headset jack | |
| Camera | 2 megapixel color camera | |
| GPS(optional) | Integrated GPS with Network Independent A-GPS | |
| Performance Characteristics | ||
| CPU | PXA 270, 520MHz | |
| OS | Windows Mobile 5.0 / Windows CE 5.0 | Windows Mobile 5.0 |
| Memory | 128MB RAM / 128MB ROM (up to 256MB) | |
| Interface | RS-232C, USB 1.1 Host & Client, Ethernet via cradle | |
| User Environment Characteristics | ||
| Operating Temp | -20°C to 55°C / -4°F to 122°F | |
| Storage Temp | -30°C to 70°C / -22°F to 158°F | |
| Humiditiy | 93% non-condensing | |
| Drop Spec | 4ft. / 1.2m drop to steel surface with silicon case, 2drops per 6 sides | |
| Integrated Radio | ||
| WWAN Radio Options | GSM / GPRS / eGPRS (850, 900, 1800, 1900MHz) or CDMA(800, 1800MHz) | GSM / GPRS / eGPRS (850, 900, 1800, 1900MHz) |
| WLAN Radio | IEEE 802.11b/g | |
| WPAN Radio | Bluetooth Class Ⅱ V1.2, IrDA 1.2 | |
| Data Capture | ||
| Barcode Scanner Options |
1D&PDF417 Laser Class II ID&2D CMOS Imager |
|
| Card Reader | ||
| MSR | Bi-directional, Track1,2,3, ISO 7810, ISO 7811, ISO 7813 | |
| IC Card Reader | EMV Level 1&2, PBOC Level 1&2, China UnionPay approved, ISO 7816 | |
| RF Card Reader (optional) | ISO 14443 A/B (MIFARE, Calypso), ISO 15693 | |
| PIN Transaction (optional) | - | PCI PED 2.0, APACS Common Criteria, GIE CB Approved |
詳細藍鳥Bluebird BIP-1300移動掌上POS應用咨詢、技術咨詢等請聯系合薪科技。
